WeldMetrix™

WeldMetrix™ is a real-time monitoring for process parameters. It saves the data along with generating and comparing reports. IOT 4.0 enabled with Wi-Fi and Bluetooth connectivity.

Salient Features

  • Use on any brand welding machine
  • Windows based control system
  • High speed version for viewing actual waveform
  • User configurable design
  • Universal device for all arc welding process
  • HF insulated for GTAW processes
  • Online and offline version
  • WPS and arc time monitoring
  • Datalogging and reporting
  • Industry 4.0 connectivity
  • Analytics and machine learning modules available

Weld Metrix-Basic Layout

Data Box Configurations
Logs up to 15 parameters as per user needs

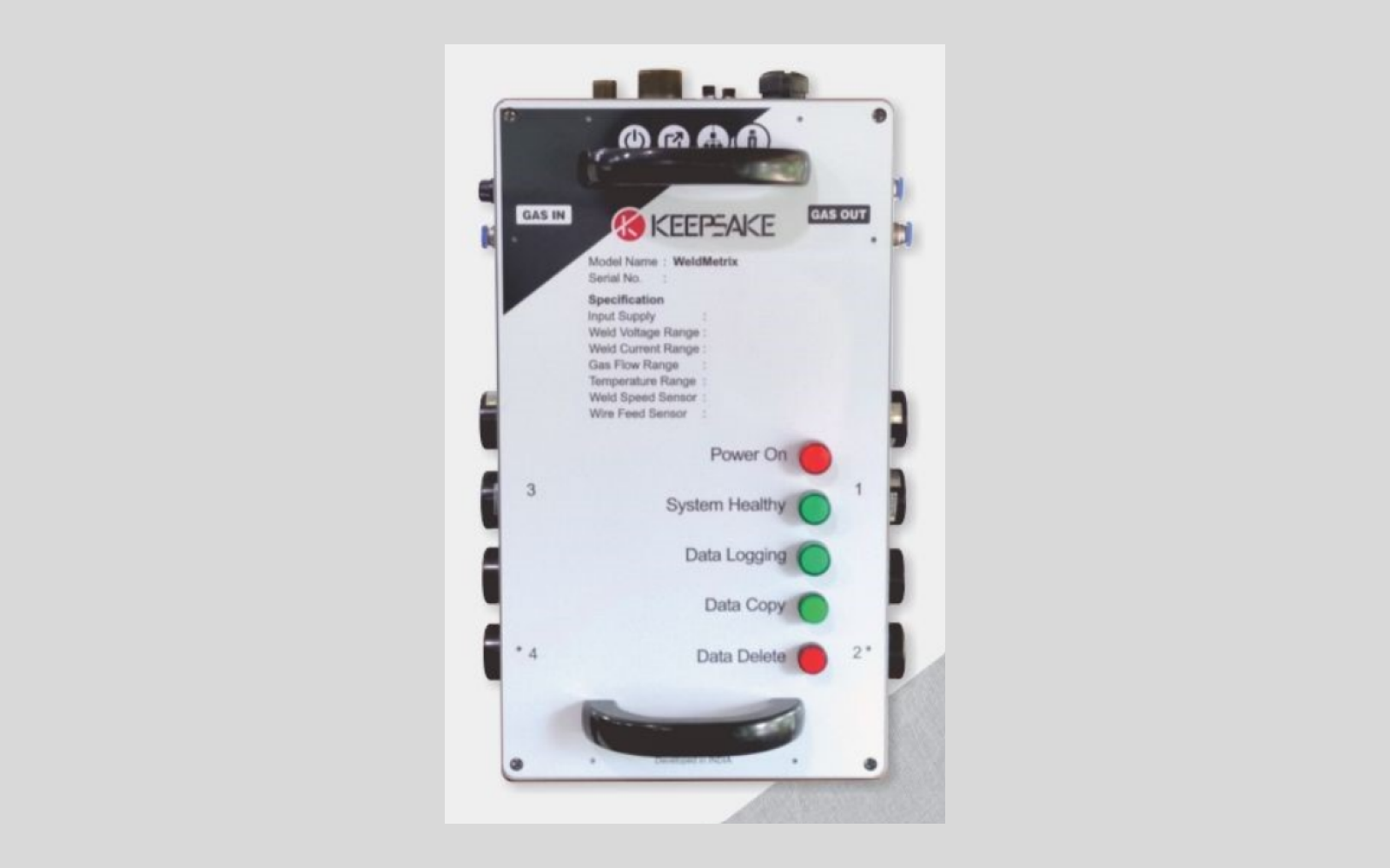

Base Box Logs Voltage and Amperage 500 and 1000 amps variants Voltage 0-100V AC/DC Current 0-500/1000 amps
Addons
Gas flow measurement Gas types Argon, CO2, Argoshield
0-50 LPM
Gas pressure measurement 0-10 bars
Wire feed speed measurement Wire dia 0.8 mm – 5 mm Separate attachment is needed for aluminium and softer wires.
Temperature measurement Non-contact infrared measurement
0 – 1000°C Multiple sensor options available as per temperature range
Humidity measurement Handheld and wall mount sensor options available for ambient humidity measurement as per user need
Welding speed measurement Separate attachment for welding speed recording
Mini thermal printer For online and summary printing
HMI HMI for real time display

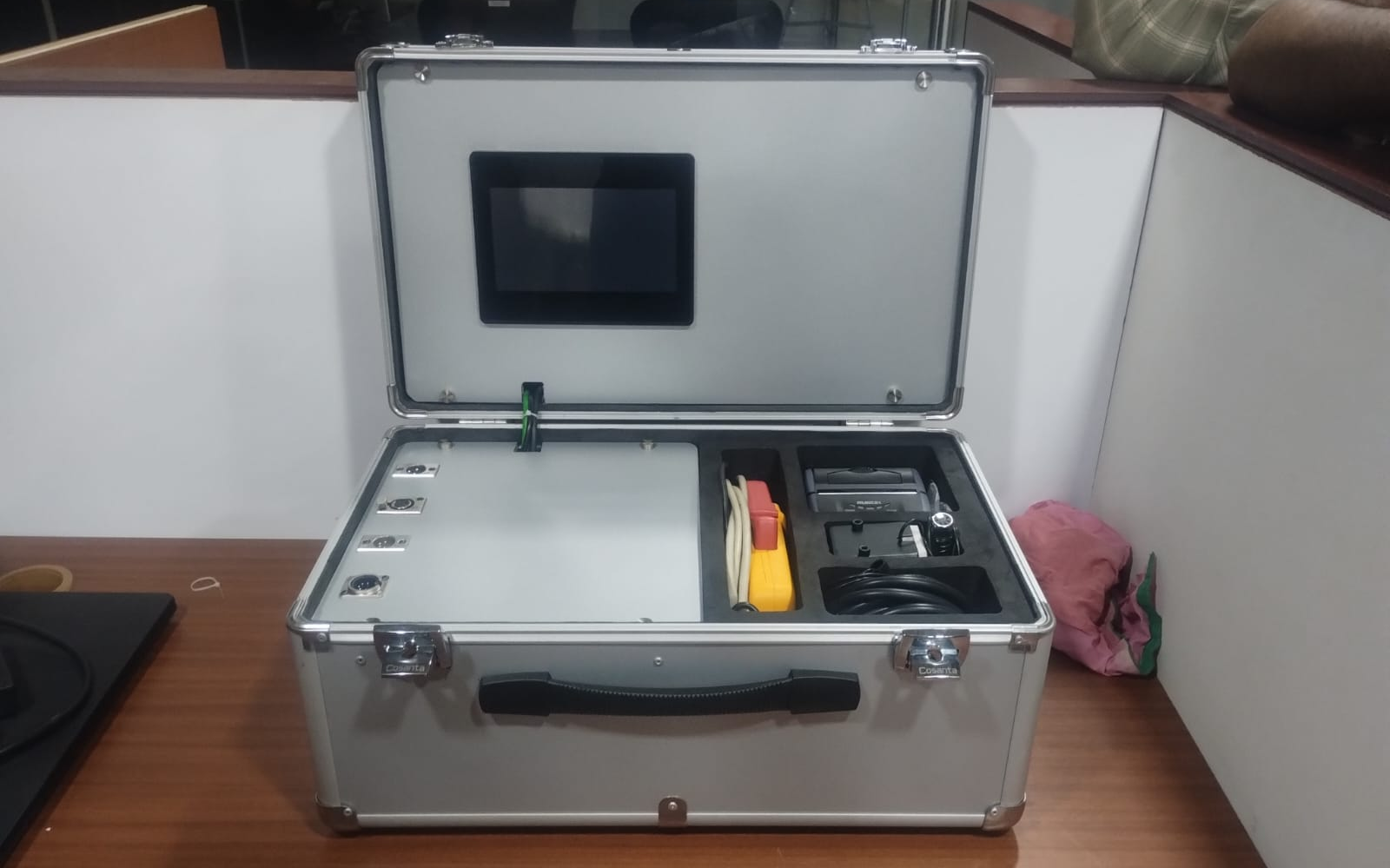

Casing variants IP64 variant for harsh environment IP20 carry case type
Software options .Automatic parameter storage in CSV file .Backup of files in USB .Realtime parameter monitoring on PC and Connectivity through LAN port .Trends Analysis .Cloud Storage and dashboard .OEE calculator

Advantages

  • Process and power source independent
  • Welder performance reports
  • Bead to parameter mapping
  • Welder traceability
  • User defined report generation format
  • Cost calculations

The Power of WeldMetrix Weld Data Logger

The WeldMetrix Weld Data Logger isn't just a logger; it's a transformative solution that brings precision, traceability, and efficiency to your welding operations. In an era of increased connectivity and digitization, our Weld Data Logger streamlines the monitoring and reporting of critical welding parameters.

Our WeldMetrix Weld Data Logger

Reliable Hardware Equipped with reliable hardware, our Weld Data Logger facilitates high-speed data monitoring, logging, and comparison in accordance with WPS and PQR requirements.

Comprehensive Data Capture

It can record and maintain all the major welding process parameters, including Voltage – up to 100v Amperage – up to 1000amps Wire feed speed – Tachometer / encoder module Gas flow and pressure monitoring – 2 channels Heat input calculations Real-time Monitoring The dashboard module enables real-time monitoring of process parameters, allowing you to make immediate adjustments as needed.

Data Management

Save and manage data with ease, and generate reports for compliance and analysis purposes.

Analytical Capabilities

Implement analytical algorithms to derive insights and improve welding processes.

IoT Integration

Seamlessly integrate with IoT modules for remote monitoring and mobile app connectivity, giving you access to critical data from anywhere.

Why Choose WeldMetrix Weld Data Logger for Your Business?

In the competitive world of manufacturing, precision, traceability, and efficiency are critical to success. Here's why Keepsake Automation's WeldMetrix Weld Data Logger is the ideal choice for your business

Precision Welding

Achieve consistent, high-quality welds by closely monitoring and controlling welding parameters.

Efficiency Optimization

Streamline your welding processes, reduce errors, and boost overall productivity.

Compliance Assurance

Ensure compliance with WPS and PQR requirements, enhancing the quality and traceability of your welds.

Data-Driven Insights

Leverage data analytics to gain insights into your welding processes, identify areas for improvement, and enhance overall efficiency.

Remote Accessibility

Monitor and manage welding processes remotely, providing greater flexibility and convenience to your team.

Get WeldMetrix Weld Data Logger

Choose Keepsake Automation's WeldMetrix Weld Data Logger and embrace the future of welding precision and efficiency. Join the ranks of industry leaders who have harnessed the power of automation to drive success and innovation in their manufacturing operations.
